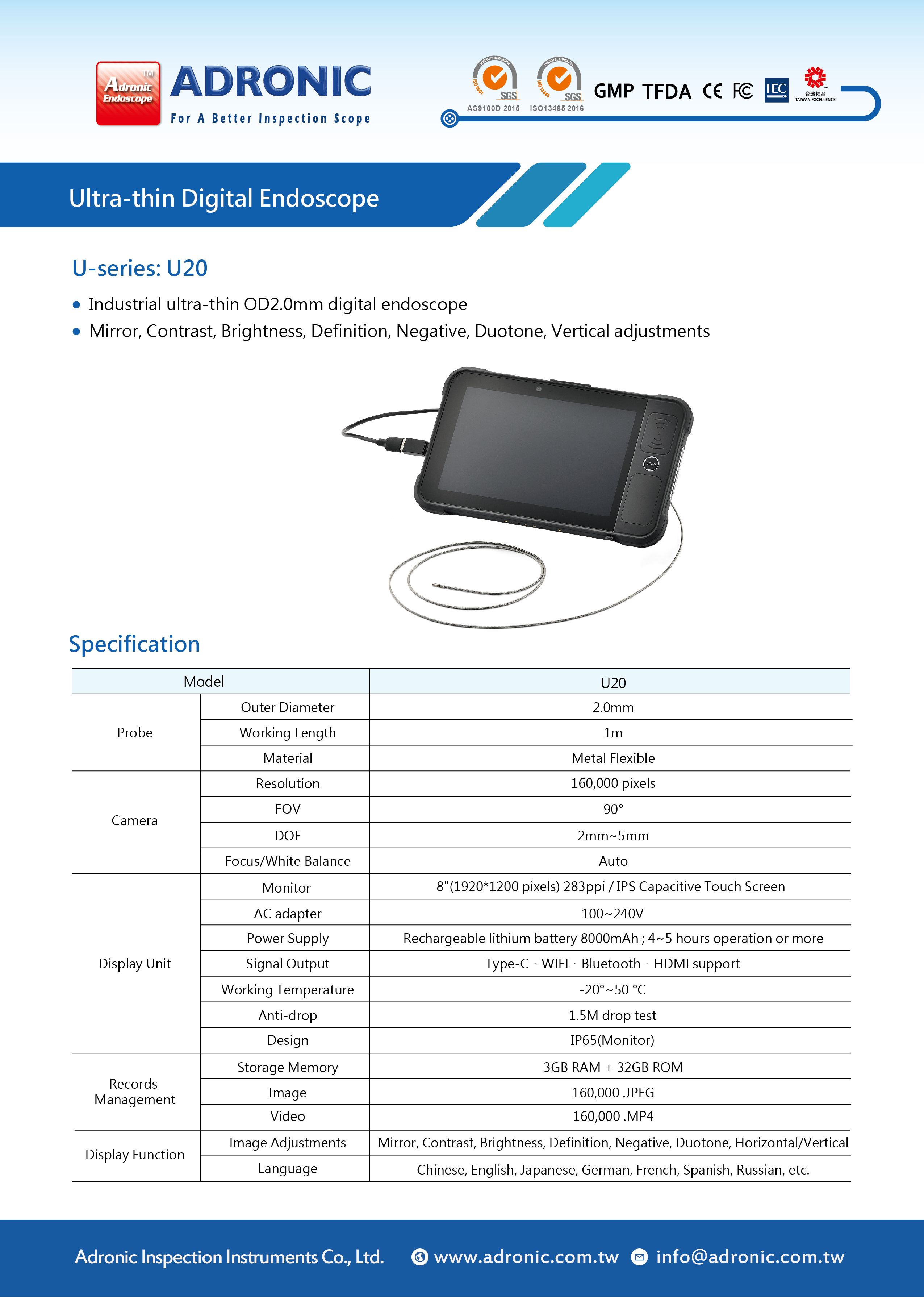

Ultra-thin Digital Endoscope
U-series : U20

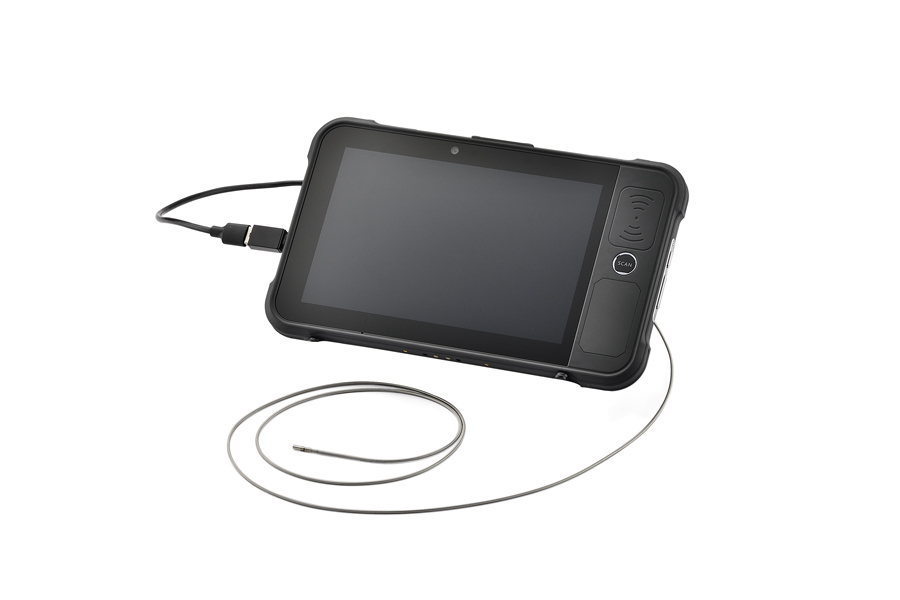

◎ Industrial ultra-thin OD2.0mm digital endoscope
◎ Mirror, Contrast, Light, Definition, Negative, Duotone, Horizontal/Vertical adjustments
| Ultra-thin Digital Endoscope | U20 | |||
|---|---|---|---|---|
| Probe | Outer Diameter | 2.0mm | ||
| Working Length | 1m | |||
| Material | Metal Flexible | |||
| Camera | Resolution | 160,000 | ||
| FOV | 90° | |||
| DOF | 2mm~5mm | |||
| Focus/White Balance | Auto | |||
| Display Unit | Monitor | 8"(1920*1200 pixels) 283ppi / IPS Capacitive Touch Screen | ||
| AC adapter | 110~240V | |||
| Power Supply | Rechargeable lithium battery 8000mAh ; 4~5 hours operation or more | |||
| Signal Output | Type-C、WIFI、Bluetooth、HDMI support | |||
| Working Temperature | -20°~50° | |||
| Anti-drop | 1.5M drop test | |||
| Design | IP65(Monitor) | |||
| Records Management |
Storage Memory | 3GB RAM + 32GB ROM | ||
| Image | 160,000 .JPEG | |||
| Video | 160,000 .MP4 | |||
| Display Function | Image Adjustments | Mirror, Contrast, Brightness, Definition, Negative, Duotone, Horizontal/Vertical | ||
| Language | Chinese, English, Japanese, German, French, Spanish, Russian, etc. | |||
