◆Model: AR 600/AR 650

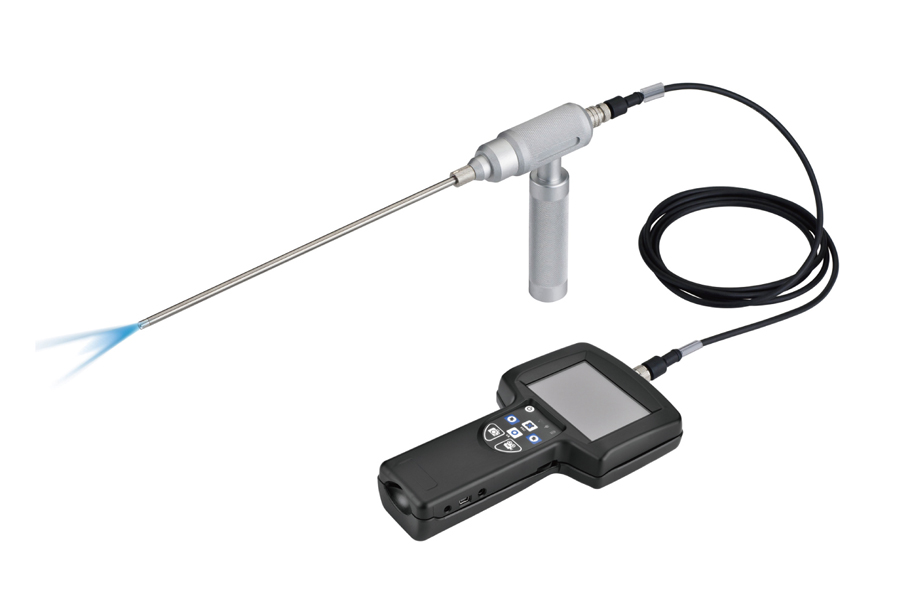

360° Rotating Rigid Video Scope
This is a stainless steel rigid probe designed for hard and durability use purpose.
Particularly toinspect compressor, engine or the blades of turbine.

◆ CMOS image sensor resolution
◆ Water Proof: IP57
◆ Probe Type: Rigid Type Probe
◆ Working length: 15cm/30cm/45cm/70cm
◆ Support 360° rotating, Rotating degree indication

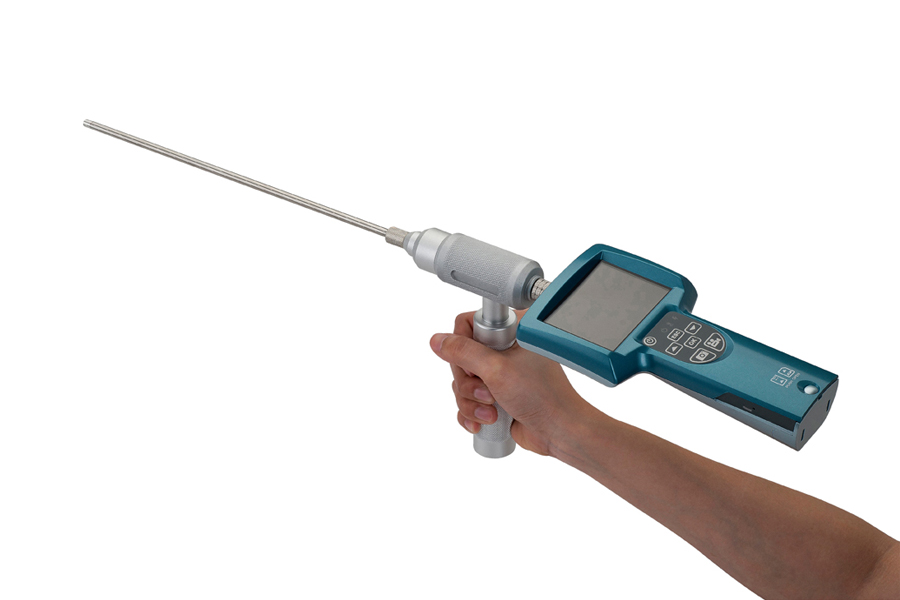

◆ Detachable hand holder



Support 360° Rotating
Our ADRONIC rigid type probe enables to support 360° rotating, it enables to check surroundings inside the restricted area. Our 360 degree rotation controller button is featured with degree guide line, user is able to know the rotated degree of lens.



Mirror Adapter Attachable
Our OD4.3mm/OD5.5mm/OD8.0mm lens for rigid type probe allow to attach mirror adapter. There are 35°-70°/45°-90°/55°-110° available to select. With the mirror adapter, users enable to inspect the side view through reflection. The field of view for our mirror adapter is up to 80°, it could enhance side view inspection.



Diameter Option
ADRONIC  rigid type probe offers a wide range of lens diameter, it is available in OD3.9mm, 4.3mm, 5.5mm, 6.5mm 90°. Every lens is equipped with different numbers of LED light, depth of field (DOF), field of view (FOV), and resolution as belowing table. Based on the inspecting target and tube diameter, users enable to choose the suitable lens for inspection.





Camera		Model	OD	DOF	Resolution	FOV
Adronic Rigid Type		AR 600	6.0mm	10~50mm	400,000	90°
Adronic Side View Rigid type		AR 650	6.5mm	20~70mm	400,000	90°

Optional Accessory	Mirror adapter	Degree
	Mirror adapter for OD4.3mm	35°~70°
		45°~90°
		55°~110°
	Mirror adapter for OD5.5mm	35°~70°
		45°~90°
		55°~110°
	Mirror adapter for OD8.0mm	35°~70°
		45°~90°
		55°~110°
Optional Accessory	Guide Ball
	Guide Ball for OD5.5mm
	Guide Ball for OD8.0mm
