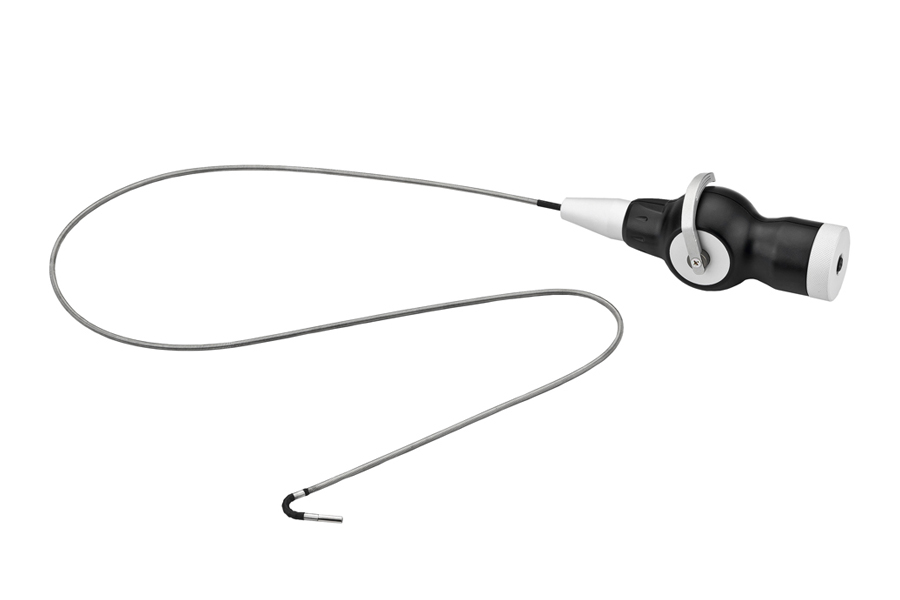

Aviation Inspection Scope-2 way 3D 360° Articulation Probe
ADRONIC 2 Way 3D 360° Articulation probe offers a variety of lens diameters and probe types to meet every inspection requirement. With its unique 2-way-articulation and 360° rotation, it facilitates checking surroundings inside a restricted area.
ADRONIC 2 Way 3D 360° Articulation probe offers a variety of lens diameters and probe types to meet every inspection requirement. With its unique 2-way-articulation and 360° rotation, it facilitates checking surroundings inside a restricted area.
Scope of application

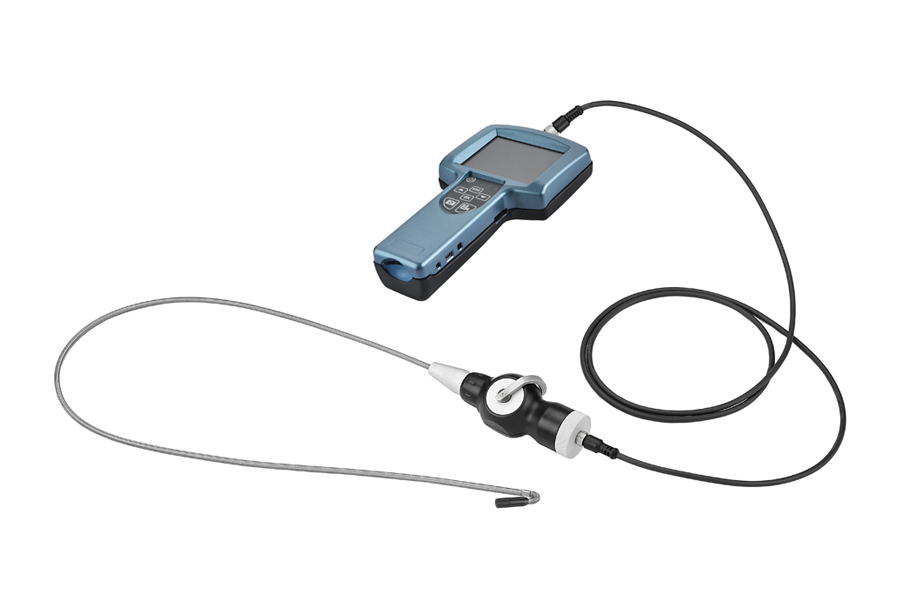

ADRONIC 2 Way 3D 360° articulation probe is an ideal inspection tool for wide ranges of industries. With the unique features of 2-way-articulating and 360° rotation, it enables checking inside restricted areas. adroVision offers variety of lens diameters, lengths, and probe types to meet every inspection requirement. All types of articulation probe is equipped with powerful light source and high resolution, and this is able to deliver clear and bright images for examination. Additionally, all articulation probes can be connected to our display units such as ADRONIC V70 or ADRONIC V55, they will allow users to capture high quality images for inspection, and also save for future reference.
ADRONIC 2 Way 3D 360° articulation probe is an ideal inspection tool for wide ranges of industries. With the unique features of 2-way-articulating and 360° rotation, it enables checking inside restricted areas. adroVision offers variety of lens diameters, lengths, and probe types to meet every inspection requirement. All types of articulation probe is equipped with powerful light source and high resolution, and this is able to deliver clear and bright images for examination. Additionally, all articulation probes can be connected to our display units such as ADRONIC V70 or ADRONIC V55, they will allow users to capture high quality images for inspection, and also save for future reference.
Fine Adjustment and 360° Rotating
ADRONIC articulation probe supports 360° rotating, it facilitates user to inspect surroundings inside restricted area. Also the uer is able to make fine adjustment by moving the lever of auto-control bar for changing the bending angle, and fix the bending angle without hand hold.
450,000 Pixels High Resolution
ADRONIC OD8.0mm lens is equipped with 6 powerful LED light and 450,000 pixels superior resolution, it enables to display clear and sharp images. This high quality image design could be applied for aviation inspection because it helps user easy to find the damage area of the blade inside the compressor and turbine.
2Way 3D 360° Bending Articulating
ADRONIC articulation porbe is featured with 2 way bending articulating. The bending angle is up to 180°. With this flexible design, users enable to inspect the target within the narrow and intricate area.
Bending angle 180°

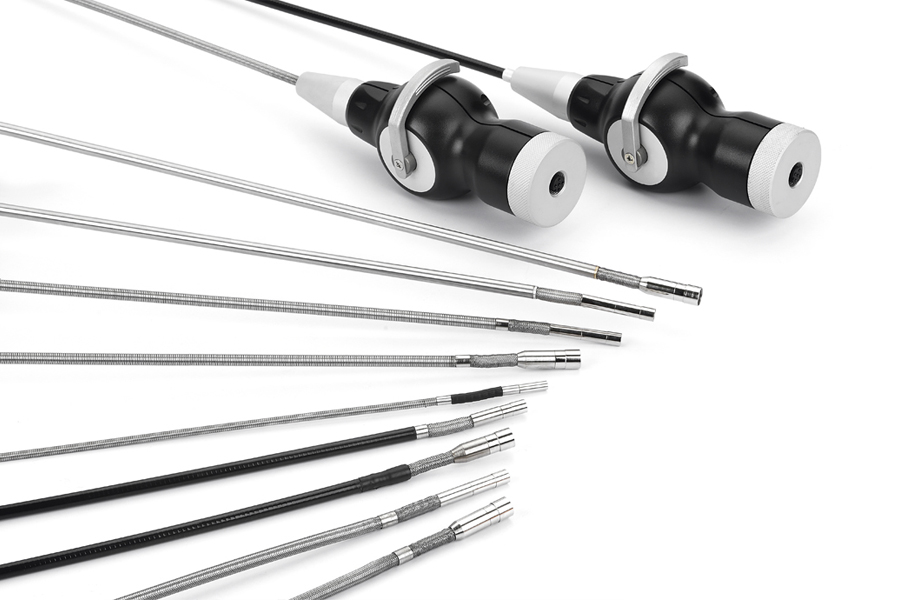

Probe Type Options
ADRONIC articulation probe offer 4 probe type for option including Flexible type, Metal-Braided type, Metal-Flexible type, and Rigid type. Every probe type has its unique features to meet different requirement. Users will be able to select the ideal articulation probe type depend on their inspection target and area.
ADRONIC articulation probe offer 4 probe type for option including Flexible type, Metal-Braided type, Metal-Flexible type, and Rigid type. Every probe type has its unique features to meet different requirement. Users will be able to select the ideal articulation probe type depend on their inspection target and area.
PVC Flexible Type
.jpg)
Metal-Braided Type
.jpg)
Metal-Flexible Type
.jpg)
Rigid Type
.jpg)
Flexibility of adroVision Probe Type
Rigid Type
Metal-Braided Type
PVC Flexible Type
Metal-Flexible Type
Customized Working Length
ADRONIC The standard working length for adroVision articulation probe ranges from 1 meter to 5 meter. In order to meet variety of inspection purposes, customization is available for articulation probe.
|

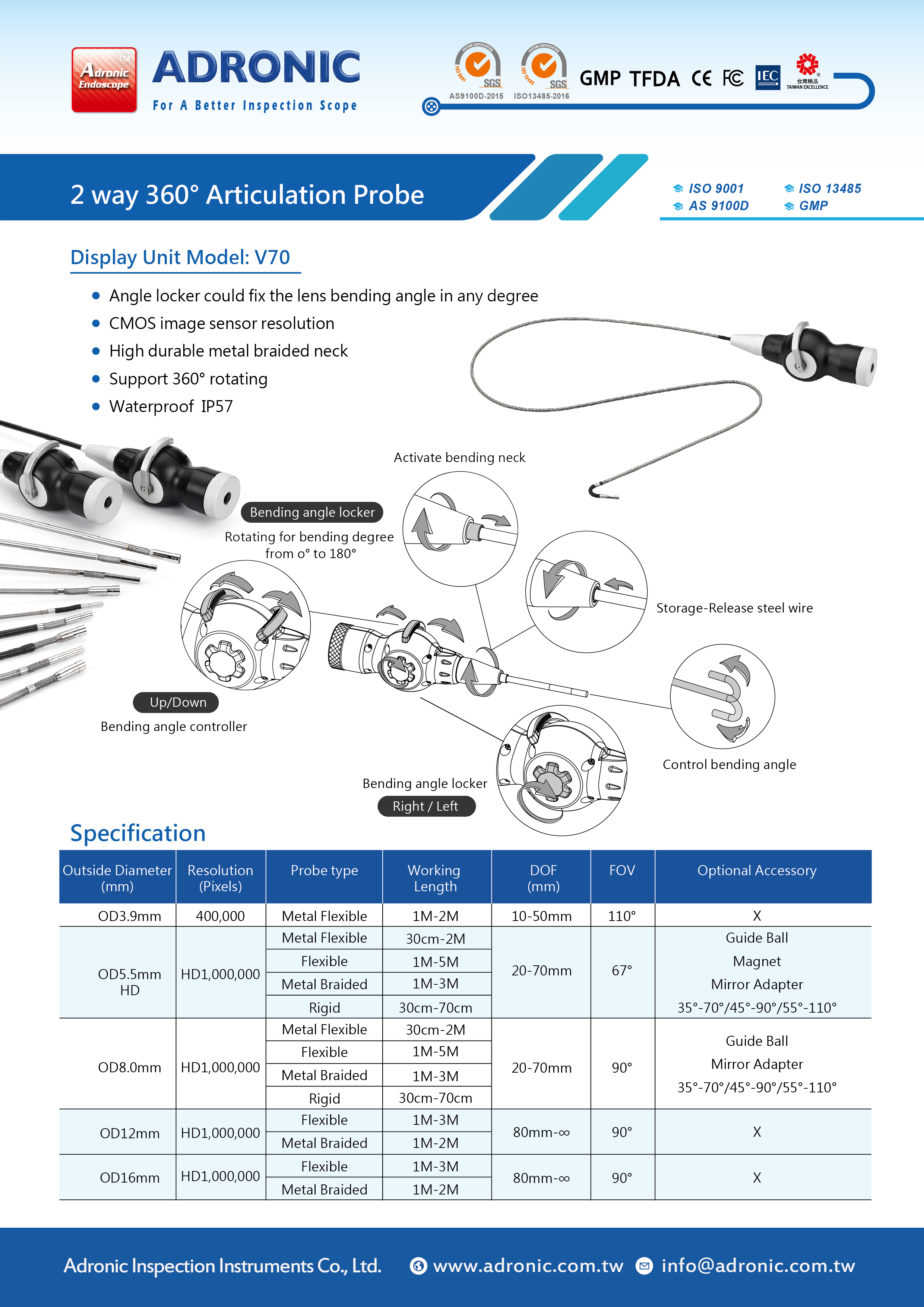

Diameter |
Resolution |
Probe Type |
Working Length |
DOF |
FOV |
Optional Accessory |
|---|---|---|---|---|---|---|
|
OD3.9mm |
400,000Pixels |
Metal Flexible |
1M-2M |
10-50mm |
110° |
✗ |
|
OD5.5mm |
450,000Pixels |
Metal Flexible |
30CM-2M |
20-70mm |
67° |
Guide Ball Magnet Mirror (35°-70°/ 45°-90°/ |
|
Flexible |
1M-5M |
|||||
|
Metal Braided |
1M-3M |
|||||
|
Rigid |
30-70 CM |
|||||
|
OD8mm |
450,000Pixels |
Metal Flexible |
30CM-2M |
20-70mm |
67° |
Guide Ball Mirror (35°-70°/ 45°-90°/ |
|
Flexible |
1M-5M |
|||||
|
Metal Braided |
1M-3M |
|||||
|
Rigid |
30-70 CM |
|||||
|
OD12mm |
450,000Pixels |
Flexible |
1M-3M |
80mm-∞ |
67° |
✗ |
|
Metal Braided |
1M-2M |
|||||
|
OD16mm |
450,000Pixels |
Flexible |
1M-3M |
80mm-∞ |
67° |
✗ |
|
Metal Braided |
1M-2M |
|
Optional Accessory |
Mirror adapter |
Degree |
|---|---|---|
 |
Mirror adapter for OD4.3mm Mirror adapter for OD12mm Mirror adapter for OD16mm |
✗ |
|
|
||
|
Mirror adapter for OD5.5mm |
35°~70° |
|
|
45°~90° |
||
|
55°~110° |
||
|
Mirror adapter for OD8.0mm |
35°~70° |
|
|
45°~90° |
||
|
55°~110° |
||
|
Optional Accessory |
Guide Ball |
|
|
|
Guide Ball for OD5.5mm |
|
|
Guide Ball for OD8.0mm |
||
|
Optional Accessory |
Magnet |
|
|
|
Magnet for OD5.5mm |
|
|
Magnet for OD8.0mm |
||
|
Packaging accessories |
Extension Cable |
|
|
|
1M-30M |
|
