◆Model 800.2822.1MF
◆Model 800.3024.1MF
◆Model 800.3928.1MF
◆Model 800.4328.1MF
Scope of application
Special design for inspecting U/O type pipe purpose.
Provides wide range of probe to meet multi-purpose inspecting requirement.
_en.jpg)

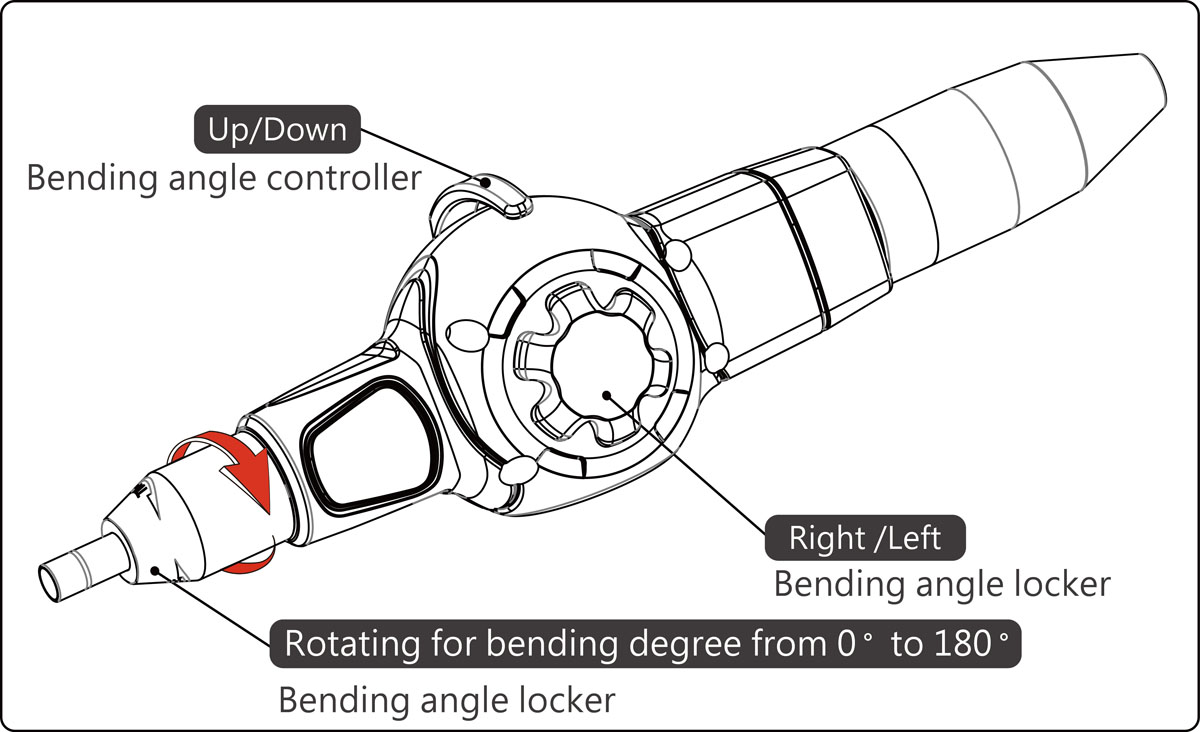

Unique Design Special Way for Storage
1. Special design for inspecting U/O type pipe purpose.
2. Angle locker could fix the bending angle in any degree.
3. Unique design for release steel wire prevents neck damage for storage.
◆Model 800.3024.1MF
◆Model 800.3928.1MF
◆Model 800.4328.1MF
Scope of application
Special design for inspecting U/O type pipe purpose.
Provides wide range of probe to meet multi-purpose inspecting requirement.
Unique Design Special Way for Storage
1. Special design for inspecting U/O type pipe purpose.
2. Angle locker could fix the bending angle in any degree.
3. Unique design for release steel wire prevents neck damage for storage.

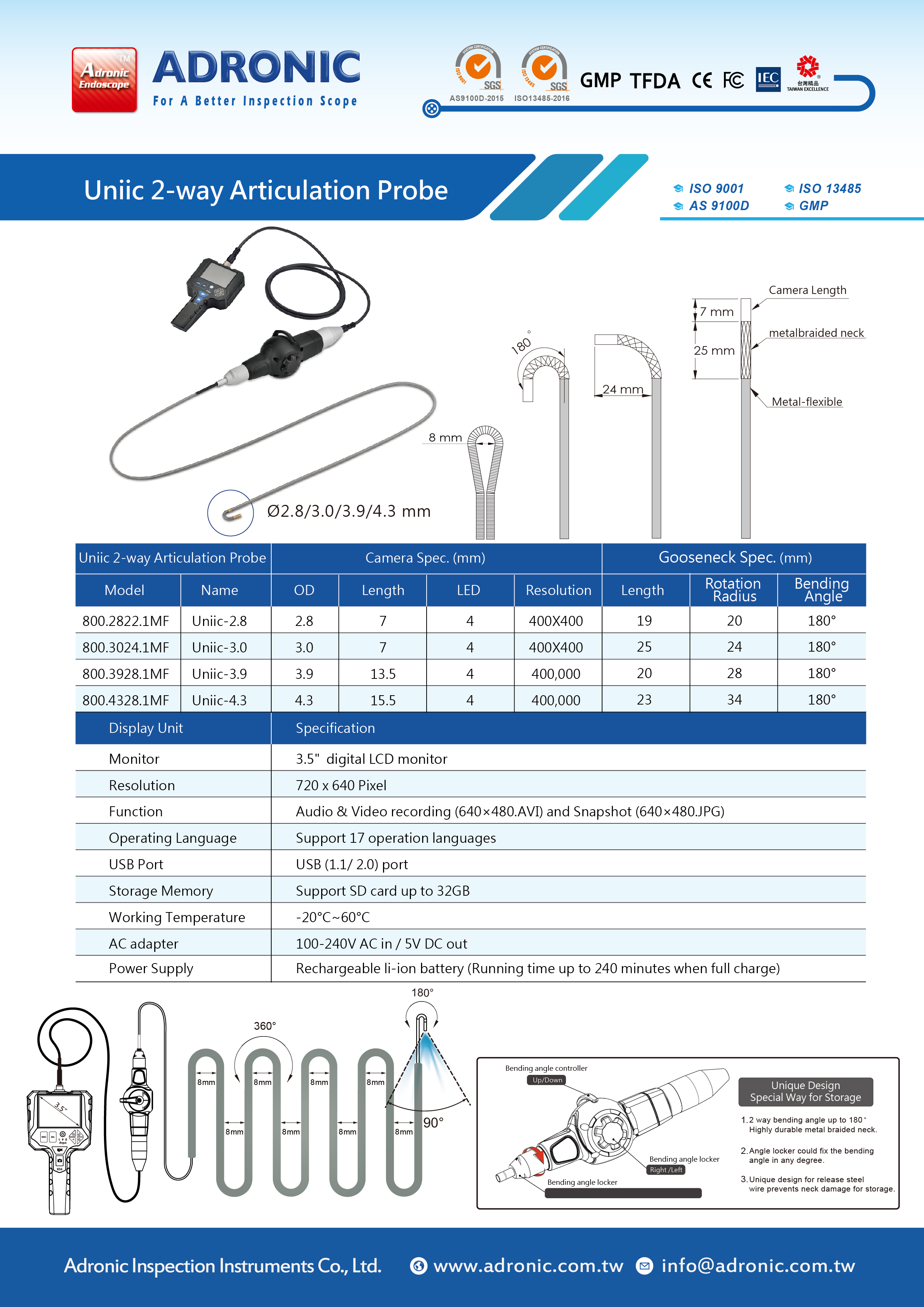

| Uniic Articulation Probe | Camera Spec. (mm) | Gooseneck Spec. (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
|
NO |
Model |
Name |
OD |
Length |
LED |
Resolution |
Length |
Rotation Radius |
Bending Angle |
|
1 |
800.2822.1MF |
Uniic-2.8 |
2.8 |
7 |
4 |
400x400 |
19 |
20 |
180° |
|
2 |
800.3024.1MF |
Uniic-3.0 |
3.0 |
7 |
4 |
400x400 |
25 |
24 |
180° |
|
3 |
800.3928.1MF |
Uniic-3.9 |
3.9 |
13.5 |
4 |
400x400 |
20 |
28 |
180° |
|
4 |
800.4328.1MF |
Uniic-4.3 |
4.3 |
13.5 |
4 |
400x400 |
23 |
34 |
180° |
|
Display Unit |
Specification |
|---|---|
|
Monitor |
3.5" digital LCD monitor |
|
Resolution |
720x640 Pixel |
|
Function |
Support Audio recording (MPEG4),Video recording(AVI) recording and Snapshot(JPEG) |
|
Operation Language |
Support 17 operation languages |
|
USB Port |
USB port (1.1/2.0) |
|
Storage Devices |
Support SD card up to 32GB |
|
Working Temperature |
-20°C~60°C |
|
AC adapter |
100-240V AC in/ 5V DC out |
|
Battery |
Rechargeable Li-ion battery(Running time up to 240 minutes when full charge) |
